BA Series
BA SERIES DATA
| MODEL | BA-000 | BA-00 | BA-0 | BA-1 | BA-2 | BA-3 | BAA-3 | |
| RATION | 2.35:1 | 2.6:1 | 3.0:1 | 4.1:1 | 5.2:1 | 6.3:1 | 18:1 | |
| MAX REV(N:M) | 360 | 480 | 735 | 1,470 | 2,940 | 4,000 | 6,000 | |
| MAX .THRUST CAPACITY | 43,000 | 64,000 | 98,000 | 196,000 | 340,000 | 490,000 | 630,000 | |
| MAX. .stem dia MM(φ) | Copper driver bush | 28 | 32 | 38 | 52 | 70 | 90 | 115 |
| WEIGHT (Kg) | 15 | 19 | 28 | 54 | 110 | 198 | 320 | |

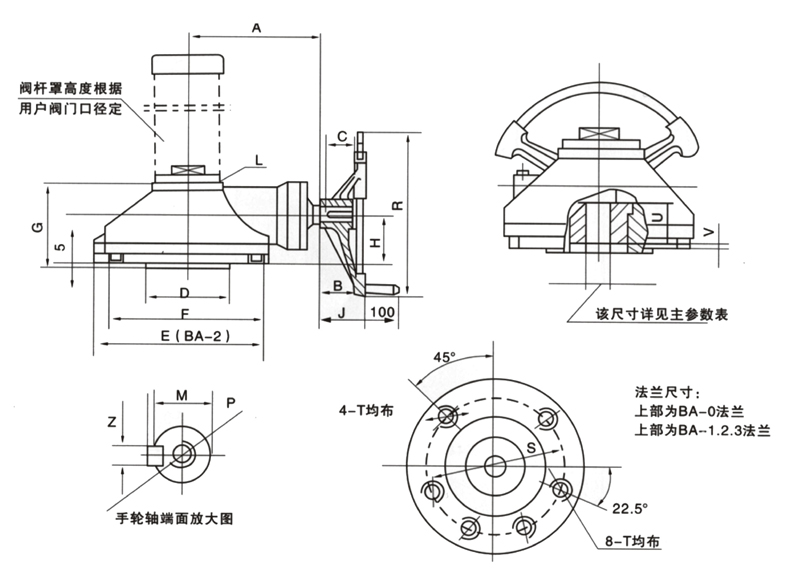

| MODEL SIZE | BA-000 | BA-00 | BA-0 | BA-1 | BA-2 | BA-3 | BAA-3 |
| A | 150 | 150 | 170 | 233 | 306 | 370 | 395 |
| B | 35 | 60 | 60 | 65 | 65 | 65 | 70 |
| C | 25 | 40 | 55 | 55 | 55 | 60 | 60 |
| D( φ ) | 85 | 100 | 130 | 200 | 230 | 260 | 260 |
| E | 390 | 410 | 510 | ||||
| F | 155 | 180 | 210 | 285 | 340 | 410 | 420 |
| J | 40 | 75 | 92 | 107 | 107 | 118 | 118 |
| G | 130 | 130 | 160 | 180 | 215 | 285 | 295 |
| H | 80 | 80 | 85 | 97 | 142 | 160 | 178 |
| L | M60 × 1.5 | M70 × 1.5 | M75 × 1.5 | M89 × 2 | M114 × 2.5 | ||
| P( φ ) | 26-0.3 | 28-0.3 | 28-0.3 | 32-0.3 | 32-0.3 | 38-0.3 | 38-0.3 |
| N | 8 | 8 | 8 | 10 | 10 | 10 | 10 |
| M | 29.6-0.15 | 31.6-0.15 | 31.6-0.15 | 35.5-0.15 | 35.5-0.15 | 41.5-0.15 | 41.5-0.15 |
| S( φ ) | 125 | 140 | 165 | 254 | 298 | 356 | 356 |
| R( φ ) | 250 | 310 | 310 | 460 | 530 | 600 | 600 |
| T | M12×20×4 | M16×25×4 | M20×25×4 | M16×35×8 | M20×35×8 | M30×45×8 | M30×45×8 |
| U | 55 | 60 | 75 | 85 | 110 | 145 | 175 |
| V | 15 | 20 |
